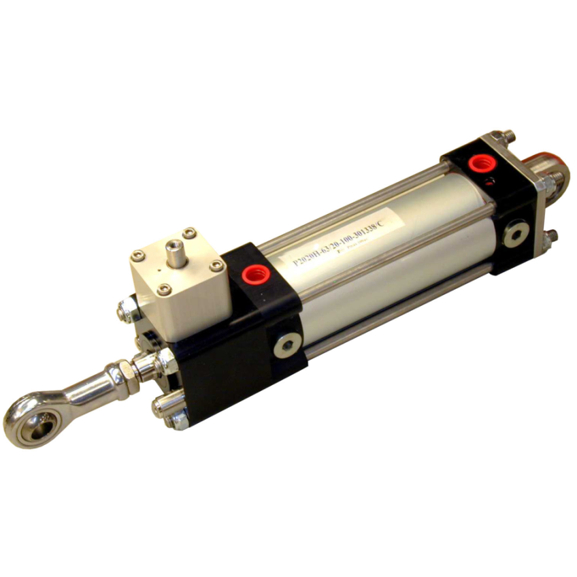

Cylinder with built in shock absorber

A pneumatic cylinder equipped with hydraulic shock absorbing function at the front end


  • Robust construction to absorb heavy inertial force
  • As easy to install and use as a standard cylinder
  • Compact design
  • Mountings made of AISI 316
  • Eliminates need for external shock absorbers


3d model of the product

Download product card (pdf)

Technical details

Absorbing capability dia 63 mm

20 kg at 2,5 m/s

Cushioning length

Hydraulic cushioning at the front end: 12 mm
Pneumatic cushioning at the rear end: 35 mm

Max. operation frequency

5 strokes a minute

Pressure range

1… 10 bar

Operating medium

Filtered ( 20µm )compressed air, lubricated on non-lubricated

Ambient temperature range

+ 5… 80 °C
