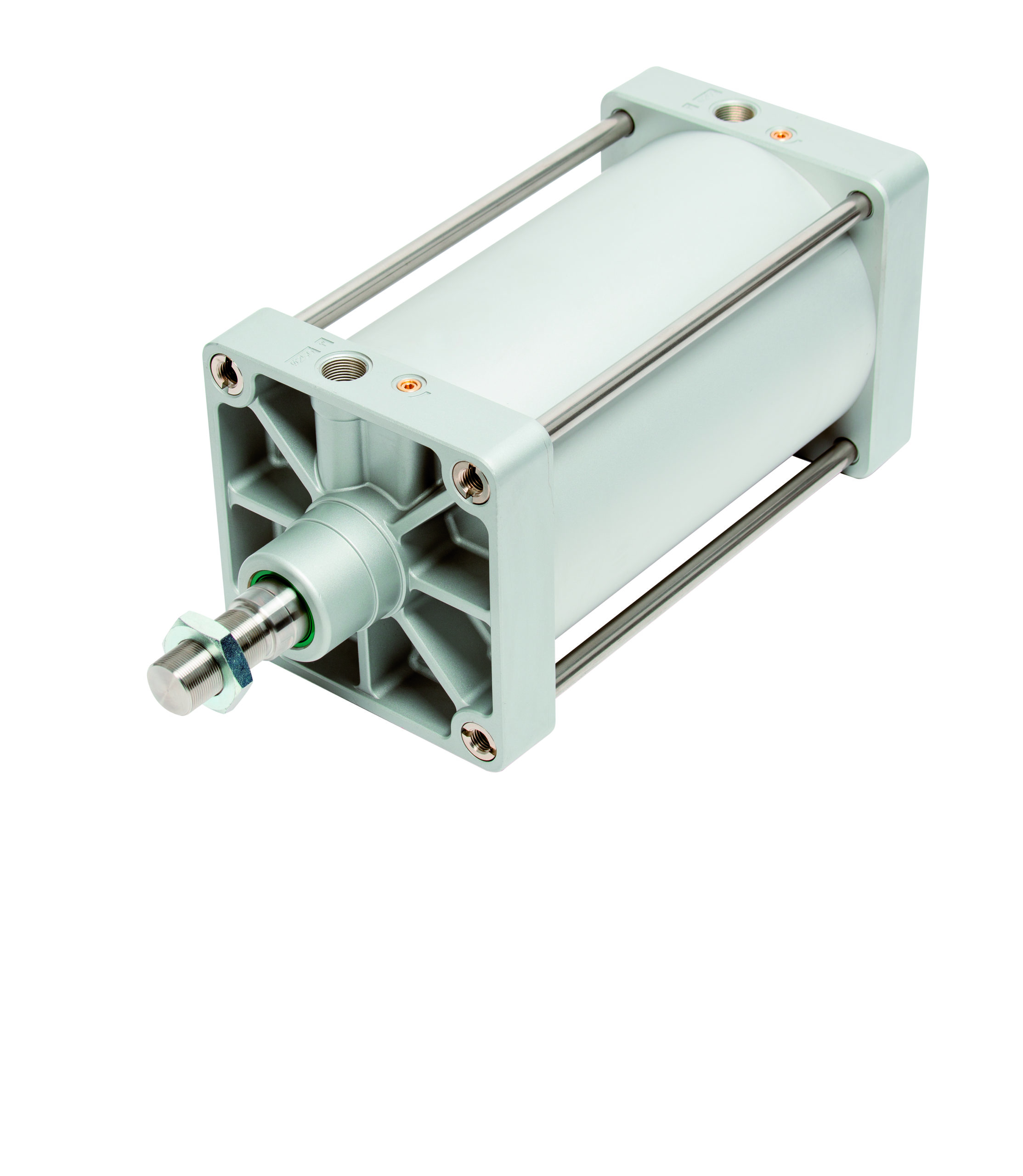

ISO 15552 cylinders – P2720

P2720-series

Technical characteristics

Double acting cylinder, with magnetic piston as standard feature

  • ISO 15552 construction
  • Diecast aluminum covers
  • Hard anodized round tube with tie rod construction
  • Chromed piston rod
  • Pressure range: 0…10bar
  • Temperature range: -35…+80⁰C with standard seals (PU)
  • Media: Pressurized air ( filtered 40μm) or inert gas. Lubricated or dry
  • Diameter 32…320mm
  • Standard strokes: 25…1000mm
  • Viton seals as an option (max temperature +150⁰C)
  • Other special seals available upon request



Constructions

  • P2720 Double acting cylinder
  • P2721 Cylinder with double rod
  • P2722 Double cylinder (tandem)
  • P2723 Rear opposed tandem
  • P2724 Single acting front spring
  • P2725 Single acting rear spring
  • P2728 Multi-position tandem
  • P2729 Double acting cylinder with internal anti-rotation



P2720 cylinders brochure pdf Download here

Download product card (pdf)

Technical details

Cylinder diameters

32…320 mm

Pressure range

0…10 bar

Media

Pressurized air (filtered 40μm) or inert gas. Lubricated or dry

Temperature range

-30…+80⁰C with standard seals (PU)

Standard strokes

25…1000 mm
