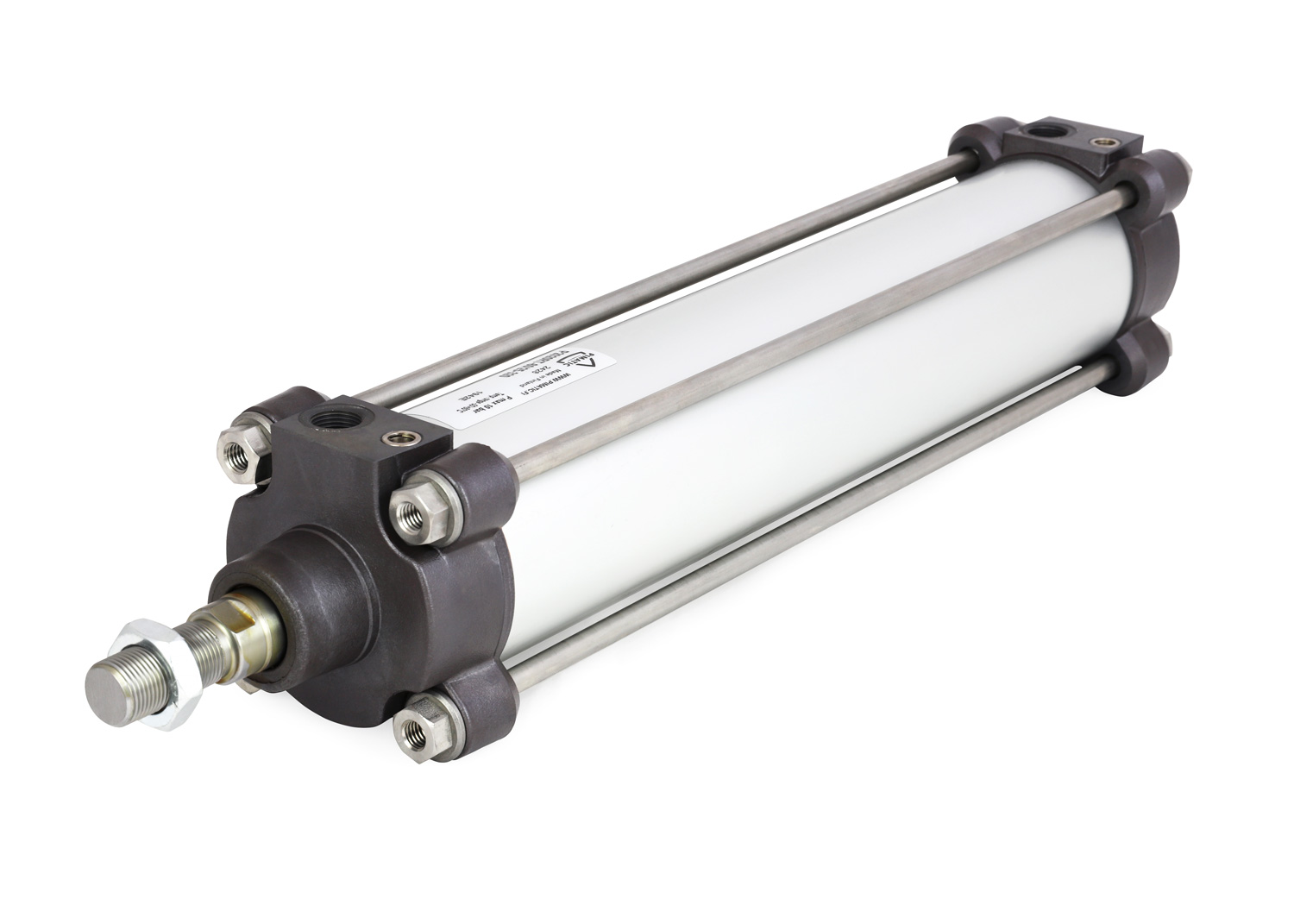

ISO 15552 / VDMA 24562 heavy duty cylinders – P2020

P2020 – series

Benefits

  • Heavy duty cylinder diameter range 32-200 mm
  • Hard-anodized barrel with tie rods
  • PTFE piston rod sealing in diameters 80-200 mm
  • Options:
    • Stainless steel piston rod, chrome plated
    • Corrosive resistant, steel parts made of AISI316
    • High temperature FKM seals
    • Double piston rod
    • Tandem cylinders
    • 3- and 4- position cylinders
  • Magnetic piston standard in diameters 32-125 mm, as an option in diameters from 160 and 200 mm

P2020 series 3D files Download here
P2020 series brochure pdf Download here



Download product card (pdf)

Technical details

Cylinder diameters

32-320 mm

Pressure range

0-10,0 bar

Operating medium

Compressed air, filtered, max. 40 μm, no lubrication needed

Ambient temperature range

-20-+80 °C with standard seals, -5-+150 °C with FKM seals

Materials

Cylinder barrel – Hard-anodized aluminium
End caps – Anodized aluminium
Piston rod – Chrome plated steel or Chrome plated stainless steel
Sealings – NBR as standard, FKM as an option
Tie rods – Diameters 32-125 stainless steel, 160-320 zinc plated steel
