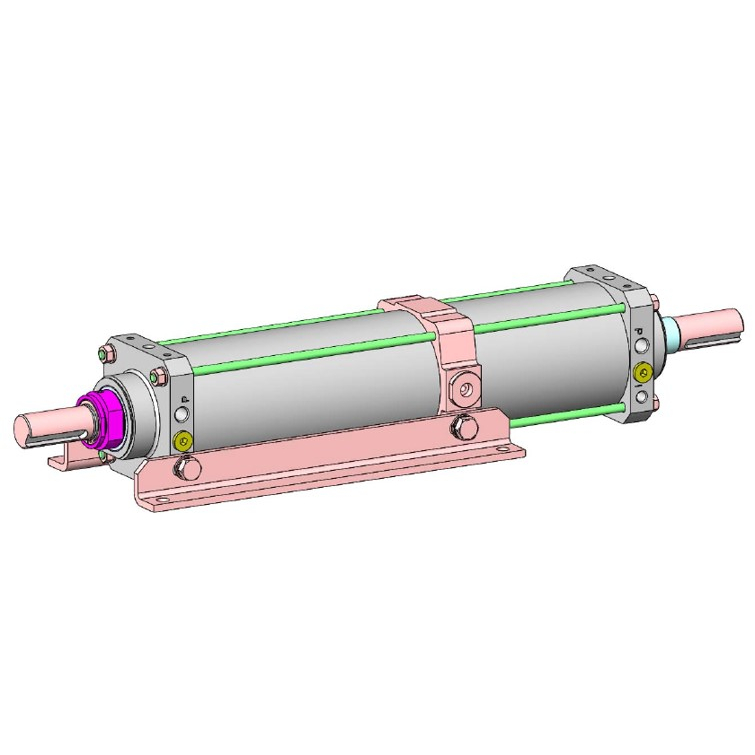

PDR – rotary actuators

Benefits

  • Double acting pneumatic rotary
    actuator with adjustable end
    cushioning to operate hatches and doors
  • Maximum torque at the end positions

Download product card (pdf)

Technical details

Operating medium

Compressed air, filtered to 40 μm, lubricated or without lubrication

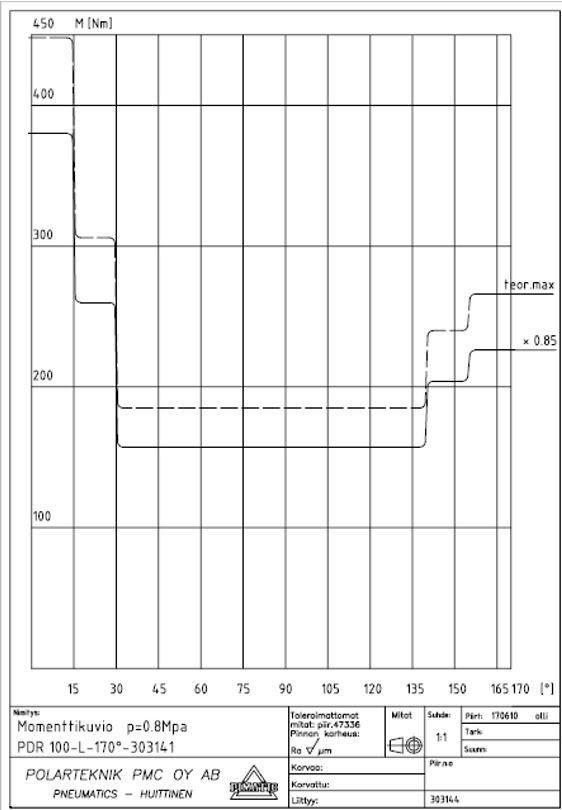

Optional output torque

Maximum torque at closed position
to keep the door closed – minimum in the middle

Rotary angle

170°

Pressure range

1…10 bar

Ambient temperature range

-20-+70°C

Materials

End caps and cylinder barrel – Anodized aluminium

Piston rods – AISI303 chrome plated
stainless steel

Mounting parts – AISI316L stainless steel

Piston rod nut – Zinc plated steel

Plugs – Brass
