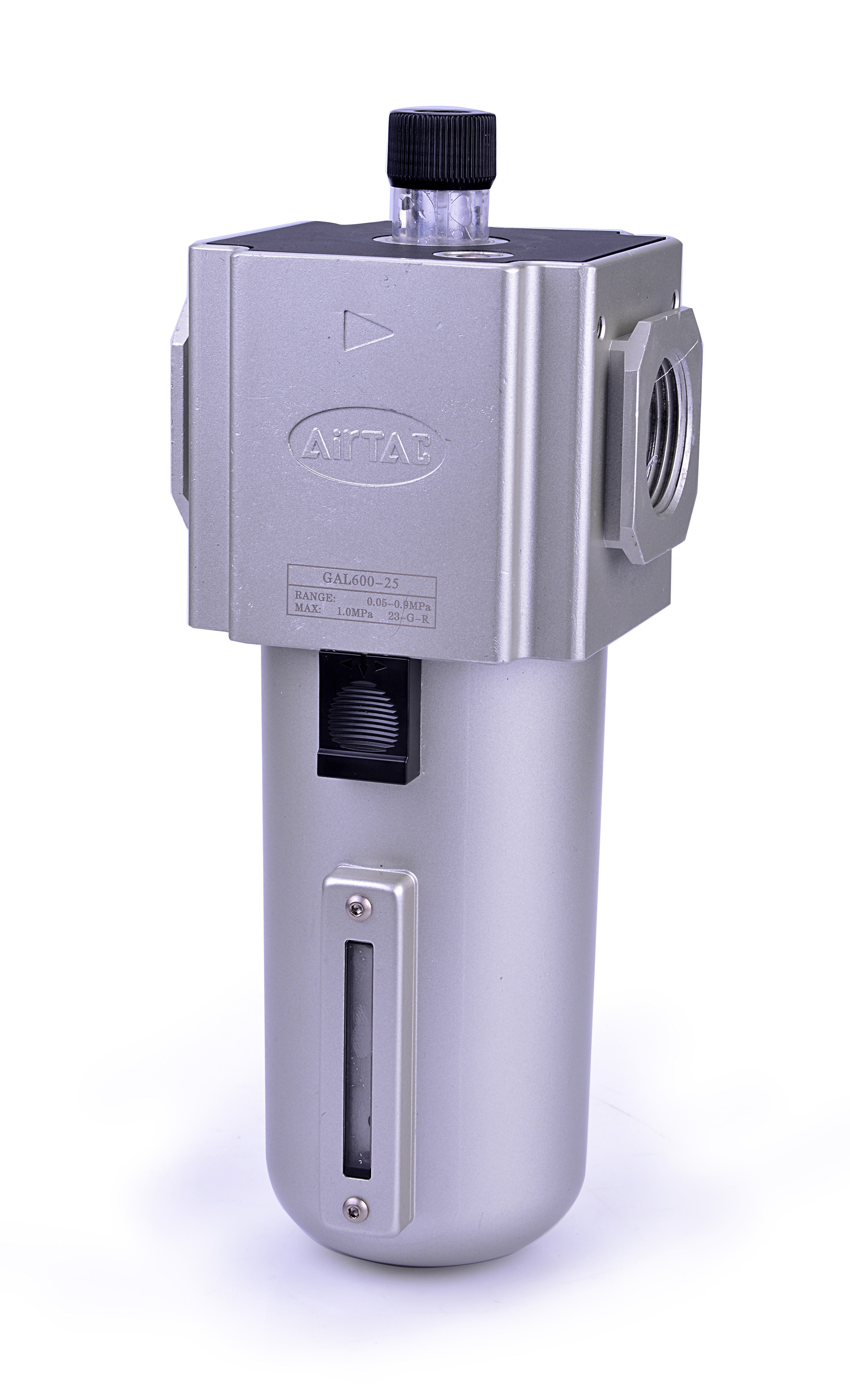

GAL lubricator

GA Series Lubricator

Benefits:

  • The structure of oil dripping adopts gap seal type, which makes
    the adjustment of oil supply more reliable
  • Oil feed ring can only make on full turn. The quantity of oil supply basically takes
    on linear distribution
  • The quantity of oil supply can be generally calculated according to
    the position of graduation ring
  • Special drip nozzle structure will produce negative pressure in oil dripping outlet
    and the mist flow is minimal
  • Three material of bowl are available: PC, Nylon and metal
  • Oil bowl can be refilled while the lubricator is under pressure
  • Large oil bowl
  • The bracket can be selected for installation

GAL lubricators 3D Files Download
GAL lubricators brochure pdf Download

Download product card (pdf)

Technical details

Port size

GAL200-06: G1/8

GAL200-08, GAL300-08 & GAL400-08: G1/4

GAL300-10, GAL400-10: G3/8

GAL400-15: G1/2

GAL600-20: G3/4

GAL600-25: G1

Pressure range

0,5-1,0 bar

Recommended lubricant

ISO VG 32 or equivalent

Material

Oil bowl – Aluminium alloy\ PC\ Nylon

Body of lubricator – Aluminium alloy

Seals – NBR

CAD configurator

Go to CAD configurator
