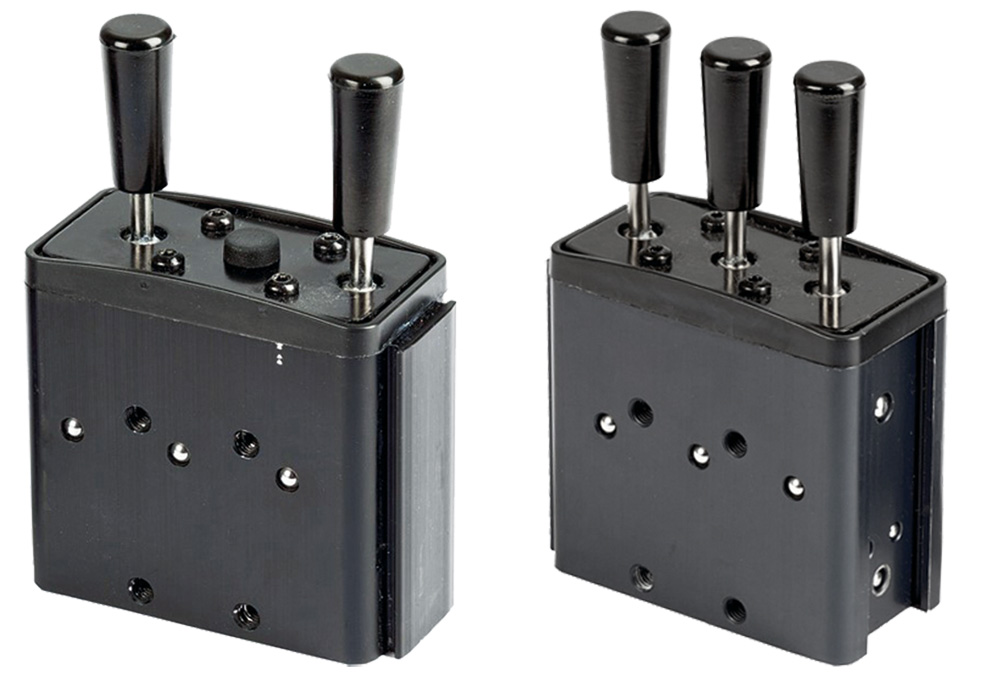

Tipping valves

Benefits:

  • Output pressure proportional to the position of the lever
  • Spring centered or detent at one or at the both
    end positions

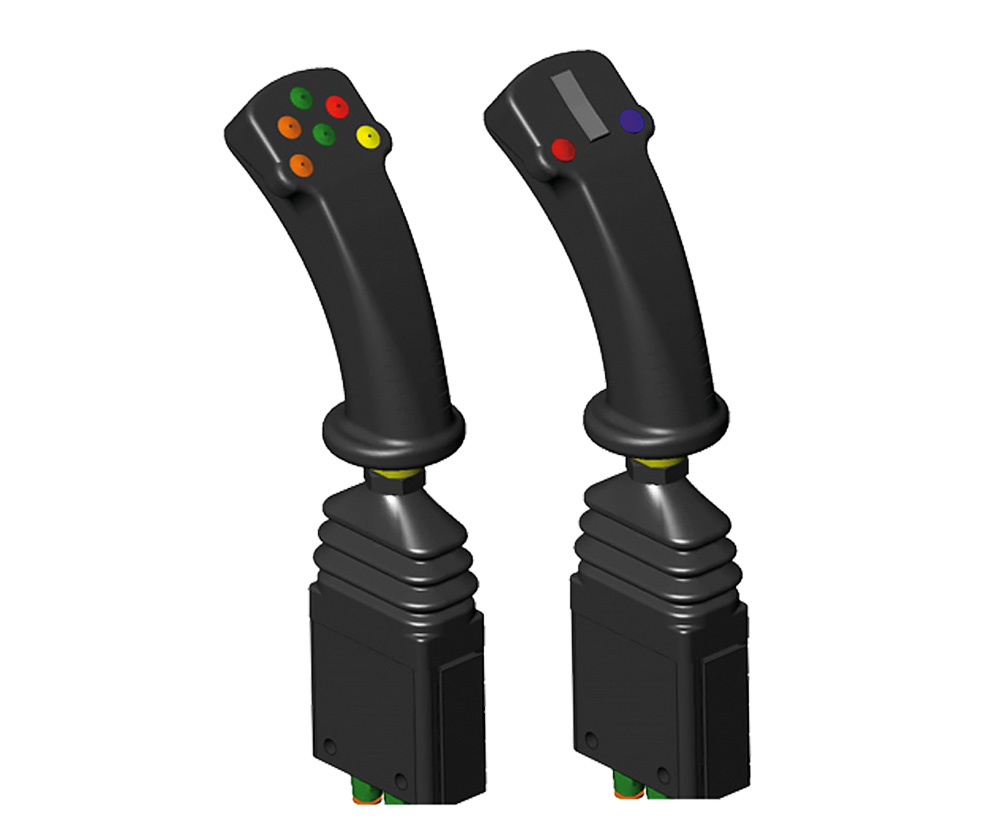

  • Electric switches integrated to the handle
  • Narrow construction – electric wire connected
    through the body
  • Easy-to-connect additional electric switch modules
    and pneumatic valve modules available
  • Several different handles available

Tipping Valves Brochure Download
Accessories for Tipping Valves Brochure Download

Download product card (pdf)

Technical details

Supply pressure range

2…10 bar

Ambient temperature range

-20…+80°C

Operating medium

Compressed air, filtration 20 μm, no lubrication is needed

Nominal flow

12 dm3/s

Connection port size

G1/8

Materials

Body – Anodized aluminium
Internal valve parts – Brass
Springs – Stainless steel
Seals – NBR and PU
Gaiter – EPDM

Valve modules with four or six normally closed 3/2-valves.

Provides precise tipping speed control
